Thermal Protection: Pyrolytic Graphite Sheet (PGS)

Pyrolytic Graphite Sheet (PGS) design engineers Panasonic
Panasonic PGS Pyrolytic Graphite Sheet

PGS (Pyrolytic Graphite Sheet) is a thermal interface material which is very thin, synthetically made, has high thermal conductivity, and is made from a highly oriented graphite polymer film.
Ideal for providing thermal management/heat-sinking in limited spaces or to provide supplemental heat-sinking in addition to conventional means.
This material is flexible and can be cut into customized shapes.



Line Up

5 matches.
Series/TypeData SheetImageFeaturesRecommended applicationsRoHS (Compliance Certificate)REACH (Report of Confirmation)

NASBIS Insulating Sheet*Low heat conductivity: 0.02W/m・K typ.
* Created thin-film sheet:100μm to 1000um
*Various proposals are available when combined with PGS
Smartphone, Wearable equipment, Digital Still Camera, Notebook PCs, Tablet PCsCertificateReport of Confirmation
Graphite-PAD high thermal conductivity in z-direction *High thermal conductivity: 13W/m・K
*Excellent compressibility
*Fit into uneven parts and provide excellent thermal resistance with a low load
*Correspond to -40 to 150℃ and maintains long-term reliability
*Cooling of heat generating components, such as electronic devices, semiconductor memory device, etc.
*General-purpose inverter, medical equipment, and DSC
*Car-mounted camera, motor control unit, automotive lighting (LED), car navigation, luminous source of laser HUD
*Base station, IGBT module
CertificateReport of Confirmation
PGS Graphite Sheet,SSM*Excellent thermal conductivity:700 to 1950 W/m・K
*Lightweight:Specific gravity:0.85 to 2.13 g/cm3
*Flexible and easy to be cut or trimmed
*Low thermai resistance
*Smart phones, Mobile phones, DSC, DVC, Tablet PCs, PCs and peripherals, LED Devices
*Semiconductor manufacturing equipment(Sputtering,Dry etching,Steppers)
*Optical communications equipment
CertificateReport of Confirmation
Soft-PGS(Compressible Type)*Thermal conductivity: X-Y direction 400W/m・K
*Thermal resistance: 0.2K・cm2/W (600kPa)
*Compressibility: 40% (600kPa)
*For cooling/heat transfer of electronic devices that generates heat, such as power modules.
*Inverters and converters
*Car-mounted camera, motor control unit, automotive LED, luminous source of laser HUD, medical equipment
*Base station, Server
CertificateReport of Confirmation

Related Information

Circuit & Thermal Protection › Thermal Protection › PGS Graphite Sheet › Products Catalog (Thermal Management Solutions)Products Catalog (Thermal Management Solutions)
Circuit & Thermal Protection › Thermal Protection › PGS Graphite Sheet › Products Catalog (Thermal Management Solutions) › Safety Precautions(Graphite-PAD)Safety Precautions(Graphite-PAD)
Circuit & Thermal Protection › Thermal Protection › PGS Graphite Sheet › Products Catalog (Thermal Management Solutions) › Safety Precautions(Graphite-PAD) › Safety Precautions(NASBIS)Safety Precautions(NASBIS)
Circuit & Thermal Protection › Thermal Protection › PGS Graphite Sheet › Products Catalog (Thermal Management Solutions) › Safety Precautions(Graphite-PAD) › Safety Precautions(NASBIS) › Safety Precautions(PGS)Safety Precautions(PGS)
Circuit & Thermal Protection › Thermal Protection › PGS Graphite Sheet › Products Catalog (Thermal Management Solutions) › Safety Precautions(Graphite-PAD) › Safety Precautions(NASBIS) › Safety Precautions(PGS) › Safety Precautions(Soft-PGS)Safety Precautions(Soft-PGS)

Features

Line-Up Comparison

Multilayer
PGS



NASBIS
Nano-Silica
Baloon Insulator

SSM
Semi-Seeling Materia

TSS
Thermal Strage Sheet

  • pgs_image
  • pgs_image
  • pgs_image
  • pgs_image
Thin-filmed and multi-layer PGS has a significantly enhanced heat transport capacityNew high-performance thermal insulation sheet capable of insulating a limited space of 1mm or lessThermal-conductive sealing material that efficiently conducts heat to PGSThermal storage material that suppresses rapid temperature rises by absorbing and storing generated heat
ApplicationsApplicationsApplicationsApplications
  • Motor
  • Measuring Instrument
  • Battery
  • Wearable Terminal
  • Base Station
  • Digital Still Camera
  • Smartphone
  • Tablet Terminal
Line-UpLine-UpLine-UpLine-Up



Excellent thermal conductivity with 700 to 1950 W/(m・K)
    (2 to 5 times as Copper, 3 to 8 time as high as Aluminium)
Lightweight (1/4 to 1/10 of Copper, 1/1.3 to 1/3 of Aluminum in density)

Flexible and easy to be cut or trimmed
Low thermal resistance and RoHS compliant



What is PGS Graphite Sheet?

A type of graphite made from Carbon, an artificial flexible graphite sheet developed by Panasonic ⇒Merit factors: light weight, high intensity, high stability, low environmental impact.



✔ Thin with high thermal conductivity: 5 times of copper
     Heat control available while remaining thin/leightweight
✔ Flexibility:Easily-worked (could be tiny or complex shape)
    More freedom in design than other sheet material like natural graphite or cooper sheet
✔ Shielding: electromagnetic wave
    Simultaneous solution for thermal and electromagnetic wave problem
✔ High stability: high grade carbon and high chemical stability
    Environmentally resistant, no deterioration with age



Solution


1. HOW IT WORKS    2. SUGGESTED PRODUCTS    3. DESIGN SUPPORT FLOW




1. How It Works

Control Heat Just by Sticking the Sheet onto the Product
AppearanceStructure

Just stick the sheetFilm the product into the shape you like

 2. Thermal Solution- Suggested Products

Counter all types of heat problems with its high thermal performance + with combination of multiple features
The basic function with which PGS graphite sheet conveys heat. Case : Smart phone surface temperature reduction.

The basic function with which PGS graphite sheet conveys heat.  image

Gives High Level of heat diffusion

  • Case : Smart phone surface temperature reduction.
Customer Needs

Lower the surface temperature

Irregular color on LCD display Low temperature burn.

Lower the temperature of component parts

PA, Sensor, etc.

Maximum usage of CPU performance
Resolutions

Lower the surface temperature image

Thermal Difussion Heat Insulation


Lower the temperature of component parts. image

Heat Transport


Maximum usage of CPU performance image

Heat Reduction


3. Thermal Solution - Design Support Flow

Optimized placement idea/product specification will be suggested from the heat simulation result
STEP 1: Contact

Let us hear about your case.

  • Target Temperature
  • Heating Components
  • Space for heat dissipating space (thickness, area, and space) etc.
STEP 2: Suggest

We will suggest several options for solution after conducting heat simulation

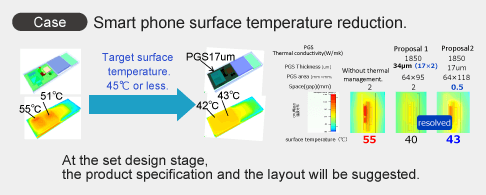

Smart phone surface temperature reduction. image



STEP 3: Verification

With our reliable real machine evaluation, verify the effect

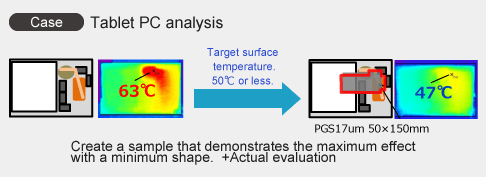

Tablet PC analysis image
