Secondary Batteries (Rechargeable Batteries): Nickel Metal Hydride Batteries

Nickel Metal Hydride Batteries design engineers Panasonic
Panasonic Ni-MH Batteries Line-up

Ni-MH battery technology is now the Ni-Cd (Nickel-Cadmium) successor technology for rechargeable and portable devices. These batteries are ideal for less complex and cost-sensitive applications. Ni-MH batteries meet most standard customer needs. Panasonic offers standard batteries and a state-of-the-art high temperature battery family that delivers excellent reliability at high ambient temperatures and demanding conditions.

Line Up

8 matches.
Series/TypeImageOld Parts NoFeatures

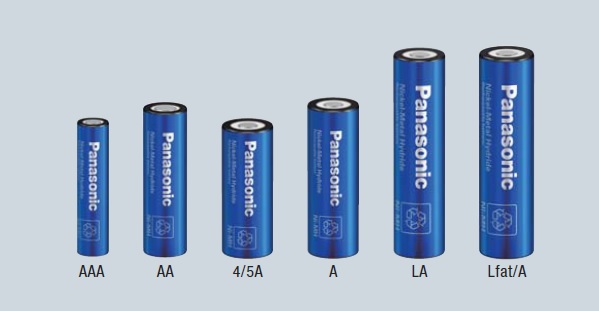

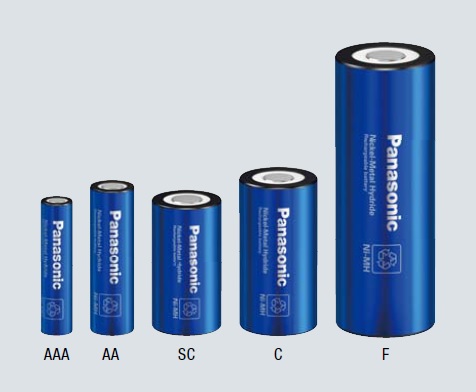

N Standard typeHHR70AAJ
HHR70AA
HHR110AAO
HHR150AA
-
HHR200A
HHR210A
-
HHR380A
HHR450A
[Features]
- High safety and reliability
- Wide product range
[Applications]
Two way radio, Intercom, Cordless phone, Medical equipment other.

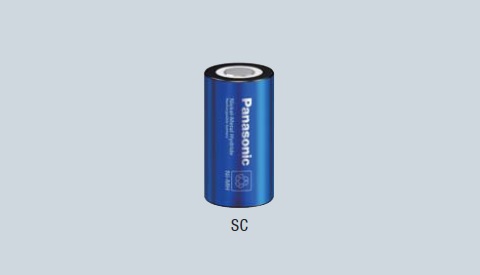

P High rate discharge typeHHR260SCP
HHR300SCP
[Features]
- High rate discharge
- Rapid charge
[Applications]
Electric power tool, Codeless cleaner, Electric toy, other.

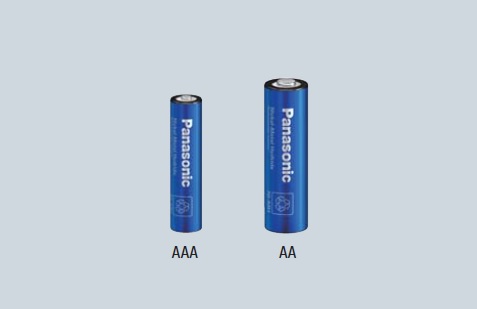

W Backup for automotive-
-
[Features]
- Enables to use at a wide range of temperature (-30 to 85℃).
- Can be used in severe conditions safely because of using aqueous electrolyte.
- Easy to control charging and check the life-time.
[Applications]
TCU, eCall, Drive recorder, Anti theft alarm, other.

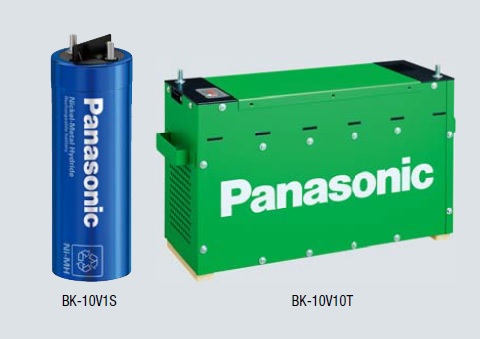

V Large infrastructure type-
-
[Features]
- Large capacity
- Efficient power supply under low temperature conditions
- LED battery level indicator
[Applications]
Automated Guided Vehicle(AGV), Railway, Base station, UPS, other.

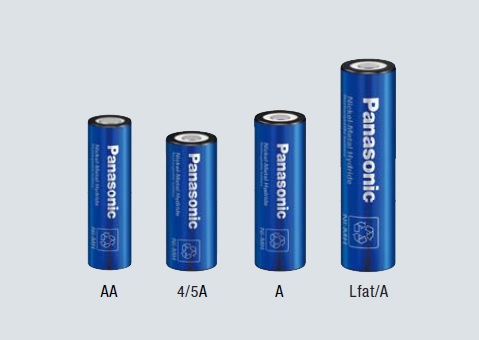

H Backup for infrastructure (standard type)-
-
-
-
-
-
[Features]
- Long life (4 to 6 years*)
- Enables to use at a wide range of temperature (-10 to 60℃)
- Suitable for replacing Ni-Cd Batteries.
*Lifetime is an expected value compared with Panasonic standard type which is charged intermittently
[Applications]
Emergency lighting, LED lighting, Base station, Server, Elevator, Automated Teller machine(ATM), Point of sales system(POS), Vending machine, Medical equipment, other.
U Backup for infrastructure (long life type)-
-
-
-
-
[Features]
- Long life (8 to 10 years*)
- Superior charge efficiency under high temperature conditions(under 75℃)
- High rate discharge (discharge 3-5lt/20℃)
- Suitable for replacing Ni-Cd Batteries.
*Lifetime is an expected value compared with Panasonic standard type which is charged intermittently
[Applications]
Emergency lighting, LED lighting, Base station, Server, Elevator, Automated Teller machine(ATM), Point of sales system(POS), Vending machine, Medical equipment, other.

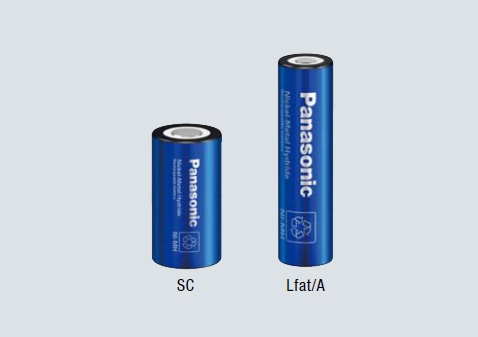

PH Backup for infrastructure (High rate discharge type)HHR250SCH
HHR330APH
[Features]
- Long life (4 to 6 years*)
- High rate discharge (discharge 5lt/20℃)
- Suitable for replacing Ni-Cd Batteries.
*Lifetime is an expected value compared with Panasonic standard type which is charged intermittently
[Applications]
Elevator, Automated Guided Vehicle(AGV), UPS, Automated Teller machine(ATM), Point of sales system(POS), Street light, other.

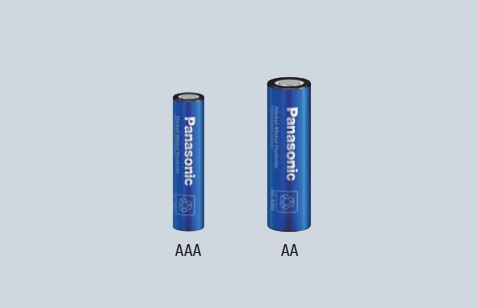

B Button Top typeHHR80AAAB
-
[Features]
- Long charge/discharge cycle life, about 1,800 times. *
- Long shelf life due to low self-discharge rate.
- Excellent temperature characteristics especially in low temperature conditions.
* Measured under conditions JIS C8708 2013 (7.5.1.1) (real capacity depends on actual conditions).
[Application]
Electric toothbrush, Shaver, Remote controller, other.

Related Information

Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › ISO 14001 Certificate of Wuxi factory_EISO 14001 Certificate of Wuxi factory_E
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › ISO 9001 Certificate of Wuxi factory_EISO 9001 Certificate of Wuxi factory_E
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Product Safety Data Sheet(BK series)Product Safety Data Sheet(BK series)
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Product Safety Data Sheet(HHR series)Product Safety Data Sheet(HHR series)
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Self Declaration for Emergency lighting_ESelf Declaration for Emergency lighting_E
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Batteries Short-Form-CatalogBatteries Short-Form-Catalog
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH Batteries Leaflet - Emergency lighting ENNi-MH Batteries Leaflet - Emergency lighting EN
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH Batterien Leaflet - Notbeleuchtungssysteme DENi-MH Batterien Leaflet - Notbeleuchtungssysteme DE
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH batteries leaflet - E-call DENi-MH batteries leaflet - E-call DE
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH batteries leaflet - E-call ENNi-MH batteries leaflet - E-call EN
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH batteries leaflet - Solar power ENNi-MH batteries leaflet - Solar power EN
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH batteries leaflet - Solar power DENi-MH batteries leaflet - Solar power DE
Batteries & Energy Products › Secondary Batteries (Rechargeable Batteries) › Nickel Metal Hydride Batteries › Catalogues & Flyers › Ni-MH handbookNi-MH handbook

Applications

  • Toothbrush
  • Emergency call (E-Call)
  • Cordless phone
  • Elevator
  • Shaver
  • Electric vehicle
  • Robot cleaner
  • Two way radio
  • Emergency lighting
  • Floating machine
  • Medical equipment
  • Solar window shutter
  • Alarm system
  • POS system
  • Medical equipment, etc.

Features

  • Suitable for nearly all applications
  • High quality and reliability
  • Good balance in terms of capacity and lifetime
  • Excellent discharge characteristics

Model Number Explanations

Panasonic Ni-MH Battery BK-330APH Model Number Explanation Image

Panasonic Ni-MH Battery BK-300SCP Model Number Explanation Image

Panasonic Ni-MH Battery BK-60AAAH Model Number Explanation Image

Panasonic Ni-MH Battery BK-60AAAW Model Number Explanation Image

Panasonic Ni-MH Battery BK-70AA Model Number Explanation Image

Panasonic Ni-MH Battery BK-80AAAB Model Number Explanation Image

Panasonic Ni-MH Battery BK-250A Model Number Explanation Image

Battery Inside

Panasonic 3D Graphic Ni-MH
