Primary Batteries: Lithium Batteries

Lithium Batteries design engineers Panasonic
Panasonic Lithium Batteries Range Image

These days Lithium battery technologies are getting more and more important. Due to their high voltage, low self-discharge and proven reliability a broad range of applications can be powered. In particular the chemistries BR and CR battery technologies are leading the industries. Panasonic offers a huge number of Lithium coin (rechargeable and non-rechargeable) and cylindrical batteries.

Line Up

11 matches.
Series/TypeData SheetImageOverview

Cylindrical type BR seriesOur Panasonic Poly-Carbonmonofluoride Lithium batteries
(BR series) are ideal for applications such as meters or
smoke detectors which demand either long-term power
supply reliability and/or need to handle a wide temperature
range of -40 degreeC ~ +100 degreeC.
[ Applications ]
- Car alarm
- Emergency call (E-Call)
- Electric Toll Collection (ETC)
- Electricity meter
- Heat cost allocator
- Life jacket light
- Tracking & RFID, etc.
[ Features ]
- Wide operating temperature range: between -40 degreeC ~ +100 degreeC
- Self discharge rate at 20 degreeC is just 0.5% per year
- Superior long-term reliability
- More than 40 years of experience in production

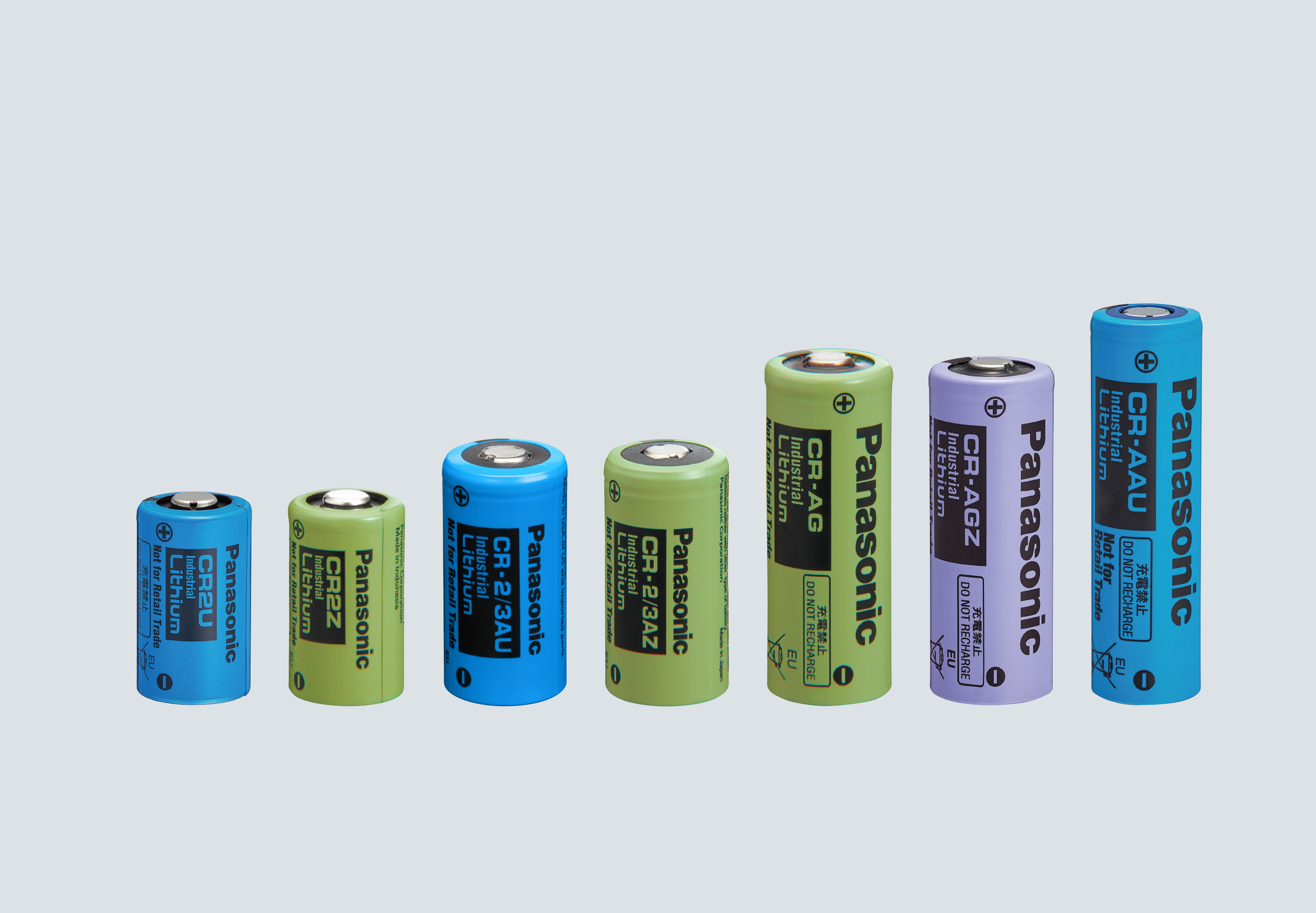

Cylindrical type CR seriesPanasonic Photo-Lithium CR type cylindrical batteries come
as either single cells or dual cell packs. All cylindrical type
Manganese Dioxide (CR series) Lithium batteries feature
a spiral structure. With the enlarged electrode surface areas,
they permit a current as high as several amperes to be drawn.
[ Applications ]
- Sanitary equipment
- Man over board device
- Search and rescue transponder
- Tracking & RFID
- Glucose meter
- Door lock system
- Window monitoring system, etc.
[ Features ]
- Operating temperature range: between -40 degreeC ~ +70 degreeC
- Very good pulse handling
- Stable voltage level during discharge
- Self discharge rate at 20 degreeC just 1.0% per year
Cylindrical type CR series /For IndustrialIdeal for industrial equipment, this series offers both excellent
high-rate discharge performance and a long service life of up to
ten years.
[ Applications ]
- Car alarm
- Emergency call (E-Call)
- Defibrillator (AED)
- Glucose meter
- Electricity meter
- Gas meter
- Smoke detector
- Life raft light
- Search and rescue transponder, etc.
[ Features ]
- Stable impedance throughout battery life
- Operating temperature range: between -40 degreeC ~ +70 degreeC
- High discharge characteristics
- Long-term reliability
- Self discharge rate at 20 degreeC is just 1% per year
Coin type BR seriesPanasonic Lithium BR coin type batteries feature high energy
density, and were developed and commercialized using
Panasonic extensive experience in battery technology.
They exhibit stable performance under high ambient temperatures.
[ Applications ]
- Fax machine
- Real Time Clock (RTC)
- Tracking & RFID
- Multimeter
- Measurement, etc.
[ Features ]
- Self discharge rate at 20 degreeC is just 1.0% per year
- Wide operating temperature range: between -30 degreeC ~ +80 degreeC
- Superior long-term reliability
- More than 40 years of experience in production
High operating temperature Coin type BR_A seriesThe high energy density and the special material for gasket
and separator make this battery series the ideal power supply
in high ambient temperature applications.
[ Applications ]
- Electric Toll Collection (ETC)
- Tyre Pressure Monitoring System (TPMS)
- Medical equipment
- Heat cost allocator
- Water meter, etc.
[ Features ]
- Superior design for high temperature applications -40 degreeC ~ +125 degreeC
- Outstanding long-term reliability
- Years of experience in production
- Self discharge rate at 20 degreeC is just 0.5% per year
Coin type CR seriesThese batteries have a proven track record of excellence
in equipment requiring high currents.
Additionally Panasonic has many years of manufacturing
experience with this battery technology.
[ Applications ]
- Remote Keyless Entry (RKE)
- Digital thermometer
- Glucose meter
- Scales
- Door lock system
- Price tag
- Watch
- Ticketing machine
- Personal digital assistant, etc.
[ Features ]
- Good pulse capability
- High discharge characteristics
- Stable voltage level during discharge
- Long-term reliability
- Self discharge rate at 20 degreeC is just 1.0% per year
- Temperature range -30 degreeC ~ +60 degreeC
Pin type BR seriesThese slim-line pin-type lithium batteries are contained in an
aluminium casing and were originally developed by Panasonic.
Coin type rechargeable VL seriesThese completely new coin-type Lithium batteries feature vanadium
oxide for the positive pole, lithium alloy for the negative pole
and a non-aqueous solvent for the electrolyte.
Coin type rechargeable ML seriesThese super compact Lithium rechargeable batteries feature
a manganese compound oxide for the postive electrode,
a lithium/aluminium alloy for the negative electrode and a
special non-aqueous solvent for the electrolyte.
They can easily be incorporated into circuits where 3V ICs are used
to save space.
Coin type rechargeable MT seriesThese coin type manganese titanium Lithium batteries use a
lithium-manganese complex oxide for the positive pole and a special
lithium-titanium complex oxide for the negative pole.
They provide a capacity which is more than 10 times that of capacitors
of the same size.

Related Information

Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD)ISO14001 Certificate(PECA-LD)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI)ISO14001 Certificate(PECGI)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD)ISO9001 Certificate(EDBD)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD)ISO9001 Certificate(PECA-LD)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD) › ISO9001 Certificate(PECGI-LBD)ISO9001 Certificate(PECGI-LBD)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD) › ISO9001 Certificate(PECGI-LBD) › PSDS Lithium batteryPSDS Lithium battery
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD) › ISO9001 Certificate(PECGI-LBD) › PSDS Lithium battery › Technical InformationTechnical Information
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD) › ISO9001 Certificate(PECGI-LBD) › PSDS Lithium battery › Technical Information › TS16949 Certificate (EDBD Micro)TS16949 Certificate (EDBD Micro)
Batteries & Energy Products › Primary Batteries › Lithium Batteries (For Europe) › ISO14001 Certificate(PECA-LD) › ISO14001 Certificate(PECGI) › ISO9001 Certificate(EDBD) › ISO9001 Certificate(PECA-LD) › ISO9001 Certificate(PECGI-LBD) › PSDS Lithium battery › Technical Information › TS16949 Certificate (EDBD Micro) › TS16949 Certificate (PECGI-LBD)TS16949 Certificate (PECGI-LBD)

Applications

  • Car alarm
  • Emergency call (E-Call)
  • Electric Toll Collection (ETC)
  • Heat cost allocator
  • Life jacket light
  • Tracking & RFID
  • Defibrillator (AED)
  • Glucose meter
  • Electricity meter
  • Door lock system
  • Keyless Entry etc.

Features

  • Low self discharge
  • 40 years experienced production
  • Wide operating temperature range (BR series)
  • Superior long-term reliability (BR series)
  • Good pulse capability (CR series)
  • High discharge characteristics (CR series)

Model Number Explanations

Panasonic Lithium Battery BR-2477A Model Number Explanation Image

Panasonic Lithium Battery BR-1/2AA Model Number Explanation Image

Panasonic Lithium Battery CR-2032 Model Number Explanation Image

Panasonic Lithium Battery CR-2/3AZ Model Number Explanation Image

3D Graphics

Panasonic 3D Graphic Lithium Battery BR-A Cylindrical Image

Panasonic 3D Graphic Lithium Battery CR-AG Cylindrical Image

Panasonic 3D Graphic Lithium Battery CR-123A Cylindrical Image

Panasonic 3D Graphic Lithium Battery CR-2032 Coin Image

Panasonic 3D Graphic Lithium Battery VL-2020 Coin Image

Page Flip

Panasonic Pageflip Lithium Handbook Image

Our Panasonic Page Flip catalogue is the easiest way to browse with your mouse through our online Lithium batteries handbook. Figure out all information about our battery characteristics, standards & regulations, battery datasheets etc. The read-like-a-book feeling provides you a sophisticated usability of our battery handbook. Find out more and CLICK the banner above!
